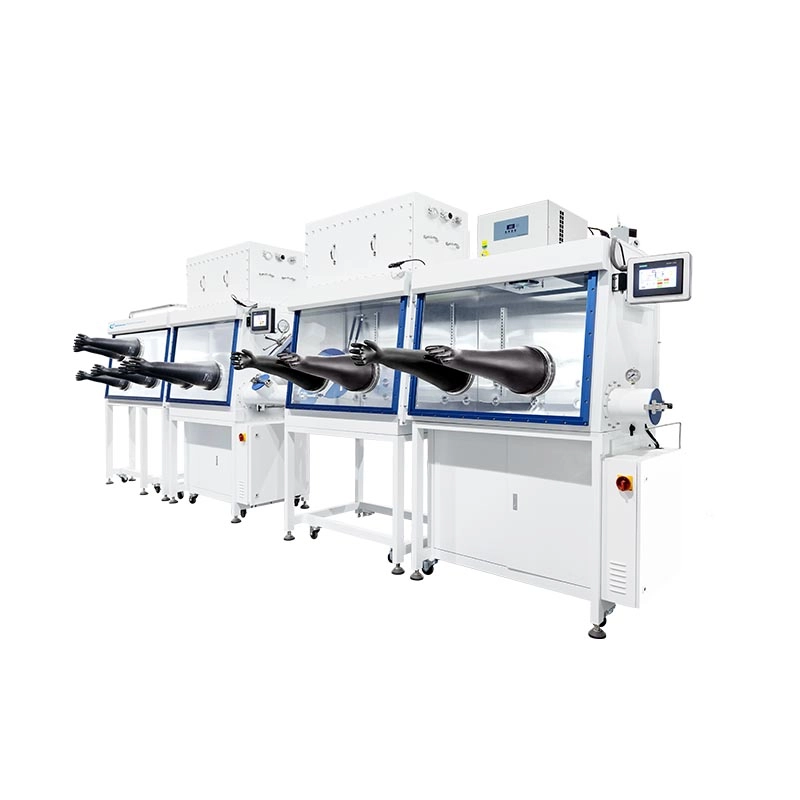

In high-precision experimental fields such as materials science, lithium battery research and development, and advanced semiconductors, ultra-clean vacuum glove boxes are essential equipment for ensuring a high-purity inert gas environment. To strictly control the water and oxygen content within the box to an extremely low level of <1ppm, the glove box typically requires frequent evacuation and transfer of materials using large and small transition chambers. In this process, the accompanying 12m³/h or 16m³/h rotary vane vacuum pump is undoubtedly the unsung hero.
The vacuum pump is a high-frequency operating power component, and its operational status directly determines the evacuation efficiency and atmosphere purity of the glove box.
I. Why is Routine Maintenance of Vacuum Pumps Important?
Rotary vane vacuum pumps rely on pump oil for lubrication, sealing, and cooling during operation. Contamination, emulsification, or insufficient pump oil will directly lead to:
1. Increased pump body temperature, accelerating wear on bearings and vanes;
2. Decreased vacuum level, affecting the accuracy of experimental data;
3. Ingress of moisture or organic solvents, causing rust or corrosion in the pump chamber.
Therefore, regular maintenance is not only to extend equipment lifespan but also to ensure the overall reliability of the glove box system.
II. Core Operating Steps for Routine Maintenance
(I) Checking Oil Level and Quality
Checking the oil level is the simplest yet most easily overlooked part of routine maintenance. After the vacuum pump has stopped and cooled down, check the oil level through the sight glass. The oil level should typically be maintained at about 2/3 of the sight glass's capacity; if it falls below this level, add vacuum pump oil of the same brand and model immediately.
Checking the oil quality is equally important. If the pump oil is noticeably darker, cloudy, or contains visible impurities, it indicates contamination and must be replaced immediately.
(II) Correctly Changing Vacuum Pump Oil
The best time to change the oil is after the equipment has been running, when the pump oil temperature is higher and its fluidity is better, making it easier to completely drain the old oil. Specific operating suggestions are as follows:
1. Draining the Old Oil: Start the vacuum pump and run it for about ten minutes to raise the oil temperature, then stop the machine, disconnect the power supply, and disconnect the pump from the glove box system; drain the old oil from the drain port into the designated waste oil container.
2. Cleaning the Pump Chamber: If possible, inject a small amount of new oil, run the pump briefly, and then drain it to flush out any residual contaminants inside. 3. Add new oil: Fill the oil to approximately 2/3 full through the oil level observation window, then reconnect the pump to the glove box.
Note that different brands or models of vacuum pump oil should not be mixed to avoid unforeseen chemical reactions or alterations in oil properties.
(III) Clean the filter screen
Vacuum pump inlets are usually equipped with filters to prevent dust and particles from entering the pump chamber. Clogged filters reduce pump efficiency and can even cause overheating. It is recommended to periodically remove the filter screen and clean it with a soft brush or compressed air, depending on the cleanliness of the operating environment. If the filter screen is damaged or severely clogged, it should be replaced promptly.
(IV) Check the air vibration control and oil mist filter
Rotary vane pumps with air vibration control can alleviate oil emulsification by adjusting the gas ballast valve to help evaporate moisture in the pump oil after removing water vapor. During routine checks, ensure the air vibration control device is functioning correctly. Also, check the oil mist filter at the exhaust pipe for cleaning or replacement to maintain a clean working environment. (V) Listening for Abnormal Noises and Checking for Leaks
During daily operation, pay attention to whether the vacuum pump makes any abnormal noises. If a sharp "whistling" sound or periodic vibration noise occurs, it may indicate that the internal bearings of the pump are worn or the blades are broken. At the same time, check the pump body and the joints of the connecting pipes for leaks to prevent a decrease in vacuum due to loose seals.
III. Precautions During Use
In addition to the routine maintenance mentioned above, the following points also deserve special attention:
1. Prevent corrosive substances from entering the pump body: For certain special experiments where corrosive gases may be released, a pre-buffer bottle or drying/filtering protection device should be installed at the vacuum pump inlet to strictly prevent corrosive media from entering the pump chamber.
2. Avoid prolonged continuous operation: Excessive continuous operation time will cause the pump body temperature to become too high. It is recommended to control the vacuuming time at a time to within 4 hours, allowing the equipment an appropriate "rest" interval.
3. Keep a maintenance log: After each oil change, cleaning, or component replacement, it is recommended to fill out a maintenance log, including the operation time, type of oil used, and any abnormal conditions. This helps to understand the "health status" of the equipment and provides a reference for subsequent maintenance.
4. Safety first: Before performing maintenance operations, be sure to ensure that the vacuum pump is completely stopped and the power is disconnected. Wear protective gloves when changing the oil to prevent waste oil from splashing into the eyes or coming into contact with the skin.
IV. Conclusion
The rotary vane vacuum pump in a vacuum glove box is not a "install and forget" device; it requires scientific maintenance from every user. Practicing seemingly tedious tasks such as oil level checks, oil quality assessments, and regular oil changes not only significantly extends the equipment's lifespan but also fundamentally ensures the consistency and repeatability of experimental data. Developing a habit of regular maintenance—this is the first step in properly managing a vacuum glove box.
