In high-precision experimental fields such as materials science, lithium battery R&D, semiconductor technology, and fine chemical synthesis, high-purity inert gas glove boxes are core infrastructure providing an anhydrous and oxygen-free ultra-clean environments.
To strictly control the water and oxygen content within the chamber to extremely low ideal levels, the equipment not only relies on a highly efficient gas purification system for continuous circulation, but also requires researchers to establish strict procedures for items entering and placed within the glove box. Without meticulous management, items entering the chamber can easily become "invisible killers" disrupting the trace water-oxygen balance.
I. Item Entry and Exit Transition Chamber: Preventing the Introduction of External Air into Dead Volume
The ultra-clean state of the main glove box is completely closed-loop; all external items must pass through a transition chamber for safe transfer. However, in actual operation, the physical properties of the materials themselves are often overlooked:
1. Utilizing Chambers in a Differentiated Manner: High-performance glove boxes are typically equipped with two sizes of transition chambers. Smaller samples, tools, or spare parts should be strictly prioritized for use in the manually controlled smaller transition chamber. This significantly reduces the gas replacement volume, saving expensive inert gas and minimizing disturbance to the main chamber's pressure.
2. Completely Eliminate "Dead Volume": Items entering the large transition chamber must undergo a rigorous "vacuum-filling" cycle. A common mistake made by many operators is placing unopened sealed reagent bottles, tightly capped sample tubes, or devices with hollow internal structures directly into the transition chamber. The residual air trapped inside these objects cannot escape during vacuuming. Once introduced into the main chamber and opened, the water and oxygen levels in the main chamber will spike instantly. Therefore, before entering the transition chamber, the caps or lids of such items must be loosened and opened to ensure that the internal air is completely expelled during the filtration stage.
II. Water and Oxygen Control to Prevent Poisoning: Direct Entry of Highly Volatile and Porous High-Moisture Materials into the Glove Box is Strictly Prohibited.
Although the integrated fan in the glove box has a large circulation flow rate, the capacity of the copper catalyst and molecular sieve packed in the purification column is limited.
1. High-Moisture Materials Must Be Pre-dried: Ordinary wiping paper, ordinary cotton swabs, certain highly hygroscopic porous powders, and fibrous materials must not be directly introduced into the box before treatment. These seemingly dry items absorb a large amount of trace amounts of moisture from the environment at room temperature and pressure, which will cause a rapid rise in dew point when brought into the box. These items must be pre-dried at high temperature in an external vacuum drying oven before entering the box.
2. Strict Control of Highly Volatile Organic Solvents: When conducting chemical synthesis or preparing battery electrolytes in the glove box, contact with various organic solvents is inevitable. It must be emphasized that large quantities of unsealed volatile solvents must not be left open in the box for extended periods. These solvent vapors, once carried by the circulating airflow into the purification column, can easily damage the molecular sieve structure or cause catalyst poisoning and failure, significantly shortening the regeneration cycle of the purification materials. After use within the chamber, all solvents must be immediately capped and tightened, and stored in the designated area on the stainless steel shelf.
III. Physical and Chemical Precautions: Precise Protection of the Glove Box and High-Sensitivity Gloves

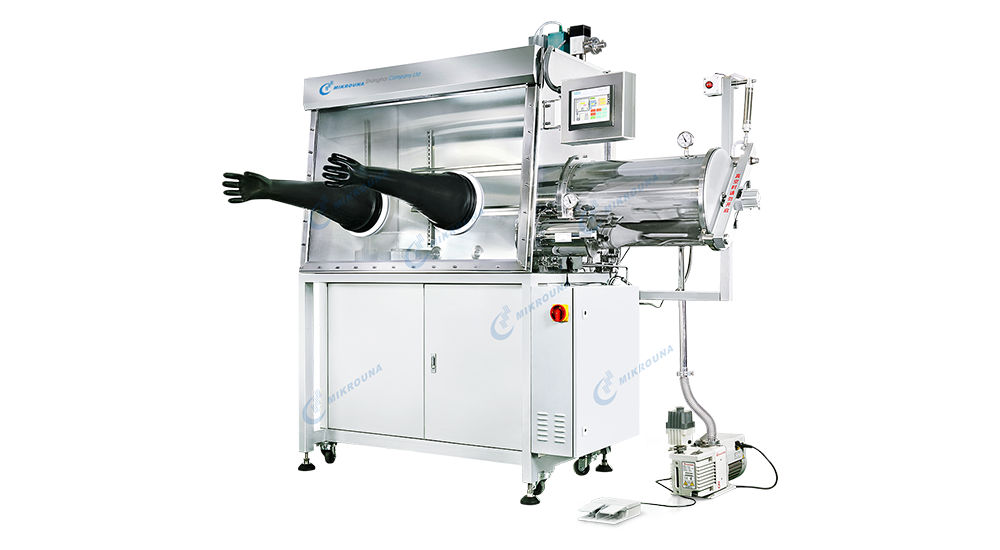

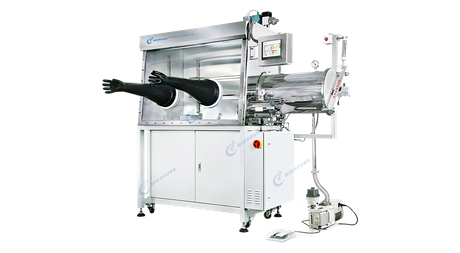

Although the main body of the glove box is constructed of approximately 3mm thick 304 stainless steel and approximately 8mm thick tempered safety glass, providing a robust structure, the operating interface for laboratory personnel relies entirely on 0.4mm thick butyl rubber gloves. This thin barrier dictates the handling of items within the chamber:
1. Physical Isolation of Sharp Tools: Sharp objects such as scissors, scalpels, tweezers, metal sheets, or syringe needles used within the chamber must be covered with protective covers or neatly placed on multi-tiered shelves when not in use. Scattering is strictly prohibited. Accidental punctures during operation can instantly cause a large influx of outside air, rendering experimental samples unusable, and potentially causing personal injury to the operator.
2. Precise Sealing of Corrosive Chemicals: Although the inner surface of the 304 stainless steel is typically treated with an oil-film brushed finish to enhance corrosion resistance, there is still a risk of corrosion and rust when exposed to strong acids, strong alkalis, or highly volatile halogens. These chemicals must be stored in corrosion-resistant Teflon containers. Furthermore, because the compartment is equipped with spare interfaces for expanded functionality, excessively high concentrations of acidic or alkaline gases can easily corrode the metal sealing rings of the interface flanges, leading to minor leaks. Therefore, the amount of corrosive materials used must be precisely controlled, and sealing must be performed immediately after use.
IV. Pressure and Airflow Balance: Avoiding Drastic Volume and Flow Field Changes within the Chamber
Standard glove box systems use intelligent PLCs and foot switches to strictly control the working pressure within a slightly positive or negative range. The system is highly sensitive; exceeding +/- 16 mbar will trigger the equipment's self-protection program.
1. Preventing Sudden Pressure Changes: Using pressurized gas sources within the chamber, conducting chemical reactions that generate significant heat or large amounts of gas, or moving large, irregularly shaped objects at extremely high speeds can cause drastic fluctuations in local or overall pressure within the chamber. Operations should be gentle, and reactions involving gas generation must be equipped with pressure stabilization or absorption devices to prevent alarm triggering and automatic valve closure.
2. Maintaining Unobstructed Gas Filters: Glove boxes typically have 0.3 μm high-efficiency particulate filters at the gas inlet and outlet to maintain a high standard of cleanliness within the chamber. When arranging items and shelves within the chamber, these two gas inlets must be avoided. Do not place reagent kits, equipment, instruments, or miscellaneous items in front of the filter, obstructing airflow. This will create dead zones within the chamber, leading to increased localized water and oxygen levels, and affecting the parallelism of the overall experiment.
V. Conclusion
The ultra-clean, inert environment of the glove box is renowned in the industry as "30% equipment, 70% management." From understanding the <1ppm limit, to standardizing the evacuation and venting operations of the large/small transition chambers, to meticulously managing butyl gloves and chamber pressure, every step of rigorous treatment of the items within the chamber is the cornerstone of ensuring the accuracy of research data, extending the lifespan of the gas purification system, and guaranteeing laboratory safety.
