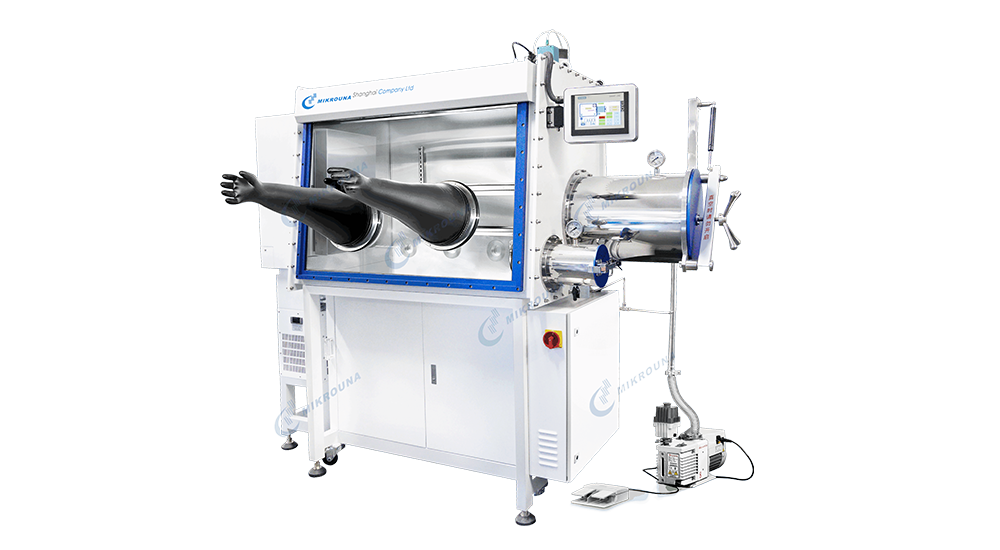

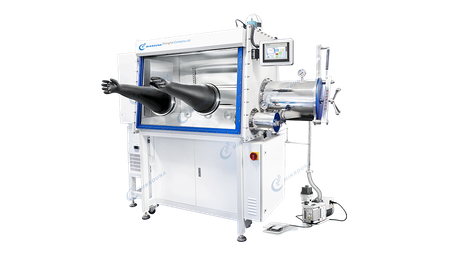

In cutting-edge fields such as lithium battery research and development, semiconductor material preparation, organic optoelectronics, and catalyst synthesis, experiments are typically conducted in a high-purity inert gas environment because the reaction materials are extremely sensitive to moisture and oxygen in the air. As the core equipment providing this environment, the detection and control of water and oxygen content inside the vacuum purification glove box directly determines the success or failure of the experiment.
So, how exactly does the glove box achieve ppm-level detection of trace amounts of water and oxygen, and how does it maintain this ultra-clean environment over long periods?
I. Core Sensor Principles for Water and Oxygen Detection in Glove Boxes
To control the water and oxygen content within the glove box to an extreme level of <1 ppm, high-precision "eyes" are essential—an oxygen analyzer and a dew point analyzer. In standard precision inert gas glove box configurations, the measurement range and operating mechanism of these two sensors have strict technical requirements.
1. Real-time Monitoring of Oxygen Concentration: Oxygen Analyzer
In cleanroom glove box systems, the conventional measurement range of oxygen analyzers is typically designed between 0 and 1000 ppm.
Working Principle: Currently, the mainstream approach uses electrochemical methods or the principle of zirconium oxide solid electrolytes. Taking an electrochemical sensor as an example, when gas diffuses into the glove box and reaches the sensor surface, oxygen undergoes a reduction reaction, generating a weak current. The magnitude of this current is proportional to the oxygen concentration. Through high-precision signal amplification and digital conversion, the control system can display the trace oxygen content within the glove box in real time.
2. Precise Capture of Trace Moisture: Dew Point Analyzer
Because moisture has an even greater impact on many chemical bonds and active metals than oxygen, glove boxes are typically equipped with highly sensitive dew point analyzers with a measurement range of 0–500 ppm.
Working Principle: This method commonly employs capacitive or impedance-based thin-film sensors. The sensor surface is covered with an extremely sensitive thin film medium. When trace amounts of water molecules in the environment are absorbed or desorbed, the capacitance or impedance of the film changes slightly. By accurately measuring these changes in electrical properties, the system can inversely calculate the dew point temperature of the gas, and then convert it into a volumetric concentration.
II. Intelligent Decision-Making: Control Synergy Between Sensors and PLC Systems
Simply possessing detection capabilities is insufficient; the glove box needs to transform the detected data into dynamic control commands. This requires an industrial-grade control system for data acquisition and analysis.
Through the control panel, operators can not only intuitively monitor real-time data, but the system also operates a complete set of self-diagnostic and adaptive logic: Dynamic Pressure Control and Adaptive Protection: To prevent external air from seeping in through tiny gaps or rubber gloves, a stable, slightly positive pressure must be maintained inside the box. Under standard operating conditions, the box's working pressure is typically precisely controlled within +/- 15 mbar. Once the system detects an abnormal pressure exceeding +/- 16 mbar, the PLC will automatically trigger a protection mechanism, adjusting the air supply or extraction valves to ensure pressure balance, thereby physically cutting off the possibility of external water and oxygen intrusion.
III. From Detection to Elimination: Material Transformation in the Purification Circulation System
When sensors detect fluctuations in water and oxygen levels due to operation or material entry/exit, the glove box's process of eliminating these trace impurities primarily relies on its circulating purification unit.
In the closed-loop circulation, the integrated fan directs the gas inside the box into a purification column filled with specific chemical and physical adsorption materials:
Chemical Deoxygenation: The purification column is typically filled with a highly efficient active copper catalyst. When oxygen-containing gas passes through, copper reacts with oxygen at room temperature to form copper oxide, with a single-pass deoxygenation capacity of up to 60 L.
Physical Dehydration: The purification column also contains an equal amount of high-efficiency molecular sieves. Utilizing their unique microporous structure and highly polar surface, they physically adsorb and lock in water molecules in the gas, with a single-pass dehydration capacity typically up to 2 kg.
Through this high-flow-rate continuous reciprocating circulation, the glove box ensures that the overall water and oxygen levels inside the box remain consistently stable at an ultra-clean level of <1 ppm.
IV. Key to Maintaining Long-Term Detection Accuracy: PLC Automatic Regeneration Logic
As usage time increases, the purification material tends to become saturated, at which point the water and oxygen data monitored by the sensors will show a periodic increase. To restore the activity of the purification system, periodic regeneration operations are necessary.
Modern glove boxes generally implement a PLC-controlled automatic regeneration process: Reduction and Desorption: During the regeneration stage, a specific ratio of mixed gas—usually a mixture of working gas and hydrogen—is introduced into the system. Under high-temperature heating conditions, hydrogen reacts with copper oxide in the purification column to produce copper and water vapor, which are discharged with the regeneration waste gas, thus revitalizing the copper catalyst; the molecular sieve desorbs and discharges the absorbed moisture through high-temperature heating, thereby completing the regeneration cycle of the purification system.
V. Conclusion
The detection and control of water and oxygen in the vacuum purification glove box is not the result of a single component, but rather a closed-loop system integrating "precise detection - intelligent decision-making - efficient elimination".
