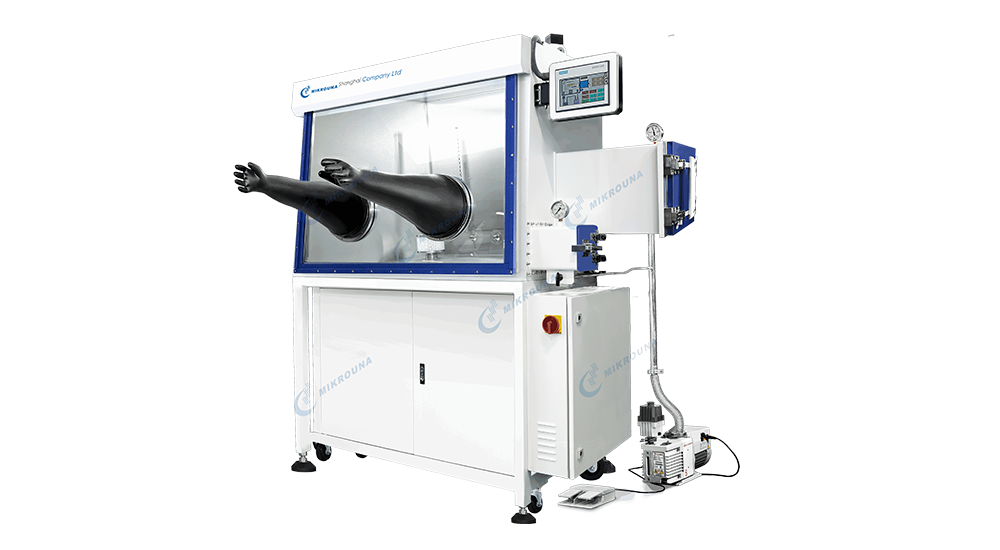

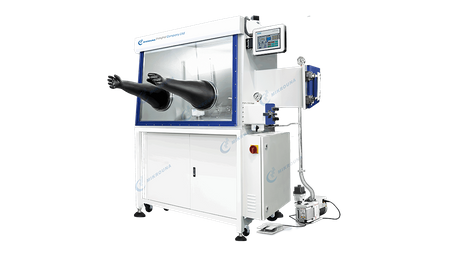

In high-precision industrial and scientific research fields such as lithium battery R&D, semiconductor material preparation, supercapacitor manufacturing, and precision laser welding, vacuum glove boxes are indispensable core equipment. They provide an extremely pure, anhydrous, and oxygen-free environment for experiments and production by filling the box with high-purity inert gas and circulating and filtering it to remove water, oxygen, and active substances.
Within the overall structure of the glove box, the transition chamber, as the hub connecting the inside and outside of the box, plays a crucial role in efficiently and stably transferring materials while ensuring the specific atmosphere within the box remains intact.
As modern process requirements continue to increase, traditional transition chamber designs are gradually revealing their technical limitations when facing complex needs such as multiple glove boxes operating in series and in-situ sample processing. This article will, in conjunction with a recent utility model patent design, provide an in-depth analysis of a new component that effectively solves industry pain points—a T-shaped heated transition chamber for glove boxes.
I. Technical Challenges of Traditional Intermediate Transition Chambers
In many advanced material preparation processes, due to their complexity, multiple glove boxes are often connected in series for automated production. However, in practice, traditional intermediate transition chambers have significant limitations:
1. Inability to Achieve In-situ Heating and Drying: In lithium-ion battery production or semiconductor material preparation, many sensitive samples and raw materials require strict drying, heating, or thermal storage during transfer. Traditional transition chambers only have a single-channel transport function and lack temperature regulation capabilities.
2. Cumbersome Transfer Process and Risk of Contamination: Due to the lack of in-situ heating, researchers must remove samples from the current glove box, transfer them to a separate external heating and drying device for processing, and then return them to the glove box via the transition chamber. This not only greatly increases the complexity of the operation and prolongs processing time but also significantly increases the risk of secondary contamination or deterioration of samples during transport.
II. What is a T-type Heating Transition Chamber?
To address the shortcomings of the aforementioned background technology, researchers have designed a T-type heating transition chamber for glove boxes that integrates "in-situ heating and drying" and "multi-directional seamless transfer" functions. Its scientifically designed structure mainly consists of the following core components:
1. Overall T-shaped cylindrical structure: The main body of the transition chamber is T-shaped. This geometric design allows its left and right ends to be perfectly rigidly connected to the external glove boxes on the left and right sides via high-precision connecting flanges, constructing a direct bridge between the multiple chambers.
2. Three-sealed door linkage design: The left, right, and top ends of the T-shaped cylinder are respectively equipped with a first sealed chamber door, a second sealed chamber door, and a third sealed chamber door. The left and right chamber doors are used to control the internal material flow between the two glove boxes, while the third sealed door at the top directly faces the external environment, enabling efficient and safe cross-linking of materials with the outside environment.
3. Dual-set bending heating wire system: Two sets of high-power heating wires are scientifically wound on the outer surface of the transition chamber cylinder. To perfectly avoid various detection interfaces and mechanical components on the cylinder and prevent structural interference, the heating wires are specially processed into a specific curved shape. Two sets of heating wires operate in parallel after being energized, ensuring extremely uniform heat distribution on the inner wall of the chamber.
4. Multi-layer high-efficiency insulation shell: A layer of high-density, high-temperature resistant insulation cotton is tightly wrapped around the heating wires to lock in heat and reduce energy consumption. A stainless steel protective cover is further added outside the insulation cotton, providing heat insulation protection while making the overall equipment more aesthetically pleasing and durable.
5. Sliding tray and temperature control instrument: A stable sliding tray is laid at the bottom of the cylinder, reducing friction during material transfer and making loading and unloading operations smoother. A high-precision temperature measuring instrument is embedded above the chamber, linked with the external main control system to achieve real-time monitoring and intelligent precision adjustment of the internal temperature.
III. Core Technological Advantages and Application Value
Compared to existing technologies, this T-shaped heating transition chamber for glove boxes offers significant technological improvements and economic benefits:
1. Revolutionary Simplification of the Process Chain: It successfully integrates efficient heating functionality into the traditional material conveying channel. During the intermittent transfer of samples between multiple glove boxes, drying, heating, or thermal storage can be completed directly within the transition chamber. This eliminates the cumbersome steps of cross-equipment transfer, reduces the probability of material exposure, significantly shortens the production cycle, and improves overall manufacturing efficiency.
2. Excellent Temperature Uniformity and High Safety: Thanks to the unique winding layout of the dual-set curved heating wires and the addition of multiple layers of insulation cotton, the temperature difference between different areas within the chamber is controlled within a minimal range, effectively preventing damage to sensitive samples caused by localized overheating. The system's temperature control is adjustable and reliable, providing a guarantee for precise experiments.
3. Excellent Environmental Adaptability and Multi-tasking Flexibility: This T-shaped transition chamber possesses strong compatibility, capable of operating independently and normally in both heating/drying mode and normal ambient temperature mode. The flexible opening and closing of the three sealed compartment doors allows it to serve as a seamless relay station between two glove boxes, as well as an independent port for transporting samples to the outside world, greatly expanding the collaborative operation boundaries of the multi-box series system.
IV. Conclusion
The T-shaped heated transition chamber for glove boxes, through its ingenious combination of a three-door T-shaped structure and in-situ precision heating and temperature control technology, perfectly overcomes the technical bottleneck of simultaneously achieving seamless material flow and in-situ drying and heat storage when processing advanced materials in multi-chamber collaborative processes. With the increasingly stringent requirements for production environment and processes in industries such as new energy and semiconductors, this practical new technology undoubtedly provides a more efficient and safer equipment engineering solution for the industry's R&D and mass production.
