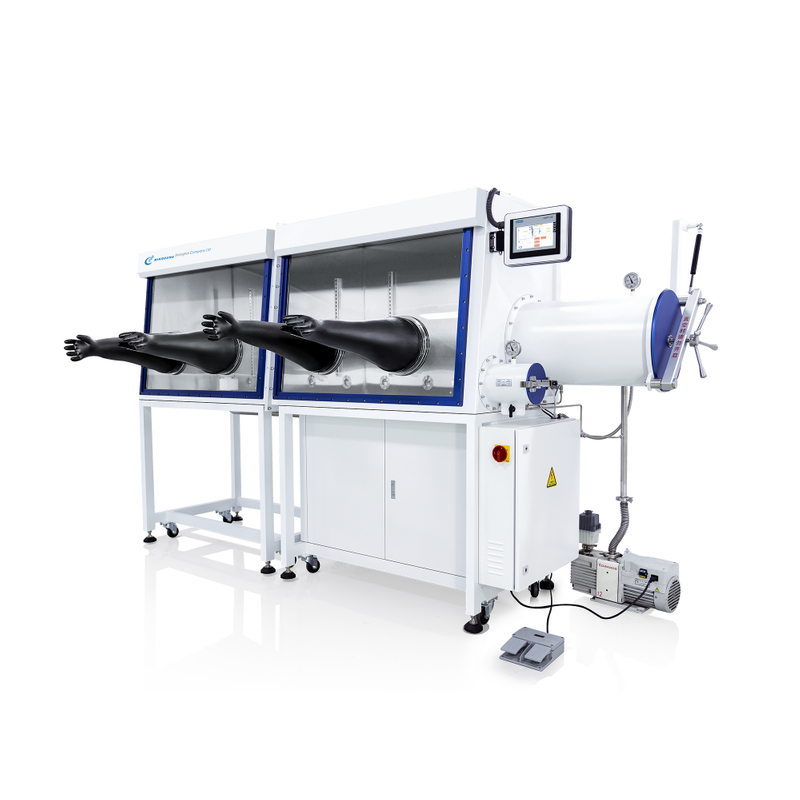

Advanced Glove Box Series

Product Features

Optional IoT smart system enables mobile control and centralized management of the glove box, ensuring safety and peace of mind. It offers intelligent functions including real-time synchronization of device status, equipment data report recording, historical data querying, proactive alarm notifications, remote device debugging, online fault diagnosis and repair requests, as well as online customer support—all accessible through the device.

• Control System: Siemens PLC

• Purifier: Single-column

• Water content: <1 ppm

• Oxygen content: <1 ppm

• Leak rate of the glove box can be manually monitored.

Product Specifications

• Glove Box Chamber

• Chamber


1. Material: 304 Stainless Steel, 3 mm thick

2. Exterior Surface: 304 Stainless Steel

3. Dimensions: 1220 mm (Length) x 750 mm (Depth) x 900 mm (Height)

• Front Window

   Tilted Viewing Window: Transparent tempered safety glass, 8 mm thick

• Glove Port

   Material: POM or Aluminum Alloy: O-ring Seal

• Gloves

   Butyl Rubber: 0.4 mm thick, 7" or 8" in diameter

• Filter

  Specifications: 0.3 μm (filtration rating), with one gas inlet and one gas outlet.

• Shelf

  Material: Stainless Steel; 2 built-in shelves, height-adjustable

• Chamber Lighting

  Configuration: LED lamps housed within a light cover.

• Connections

  Specifications: DN40 KF flange, several spare ports, one power supply connection

Purification System

• Purification Column

1. Function: Gas-tight sealing and removal of water & oxygen.

2. Container Material: 304 Stainless Steel

3. Purification Materials: 5 kg copper catalyst, 5 kg molecular sieve

4. Purification Capacity: Oxygen removal 60 L, water removal 2 kg.

5. Specifications: Water and oxygen content < 1 ppm.

• Circulation System

   Working Gases: Nitrogen, Argon, Helium

• Regeneration

1. Operation: Regeneration process is automatically controlled by the PLC.

2. Regeneration Gas: Working gas mixed with 5–10% hydrogen

• Vacuum Pump


1. Specifications (Flow Rate): 8 m³/h, 12 m³/h (Optional)

2. Rotary Vane Pump: Equipped with an oil mist filter and pneumatic vibration control

• Valve

1. Main Valve: DN40 KF electro-pneumatic angle valve.

2. Control Valve: Integrated solenoid valve.

Antechamber

• Large Antechamber

1. Antechamber Body




• Dimensions: Diameter 360 mm, length 600 mm (Diameter 400 mm optional).

• Material: 304 Stainless Steel

• Surface: Interior features an oil-coated brushed finish; exterior is available in either painted or mirror-finished options.

   b.Accessories

• Tray: Sliding Tray

• Chamber Door: Double doors made of anodized aluminum alloy, 10 mm thick, vertically operated with a lifting mechanism.

• Pressure Gauge: Analog display

   c. Control

• Operation: Automatic Control




• Small Antechamber

1. Antechamber Body

• Dimensions: Diameter 150 mm, length 300 mm (Diameter 100 mm optional).

• Material: 304 Stainless Steel

• Surface: Interior features an oil-coated brushed finish; exterior is available in either painted or mirror-finished options.

   b.Accessories

•  Antechamber Door: Double door

• Pressure Gauge: Analog display

   c. Control

• Operation: Manual Operation




Control System

• Display: Siemens PLC Touch Screen

• Functions: Includes self-diagnostics, automatic restart after power failure, pressure control and adaptive functions, automatic control, circulation control, and password protection.

• Pressure Control: Manages the pressure in both the main chamber and the antechamber. The working pressure of the main chamber can be freely set within a range of ±15 mbar; the system will activate automatic protection if the pressure deviates beyond ±16 mbar.

• Footswitch: Chamber pressure can be adjusted via the footswitch



• Data Logger: Automatically records system data.

Accessories

• Vacuum Pump


    Specifications: 8 m³/h, 12 m³/h, 16 m³/h

• Oxygen Analyzer

    Measuring Range: 0–1000 ppm

• Dew Point Analyzer

   Measuring Range: 0–500 ppm
