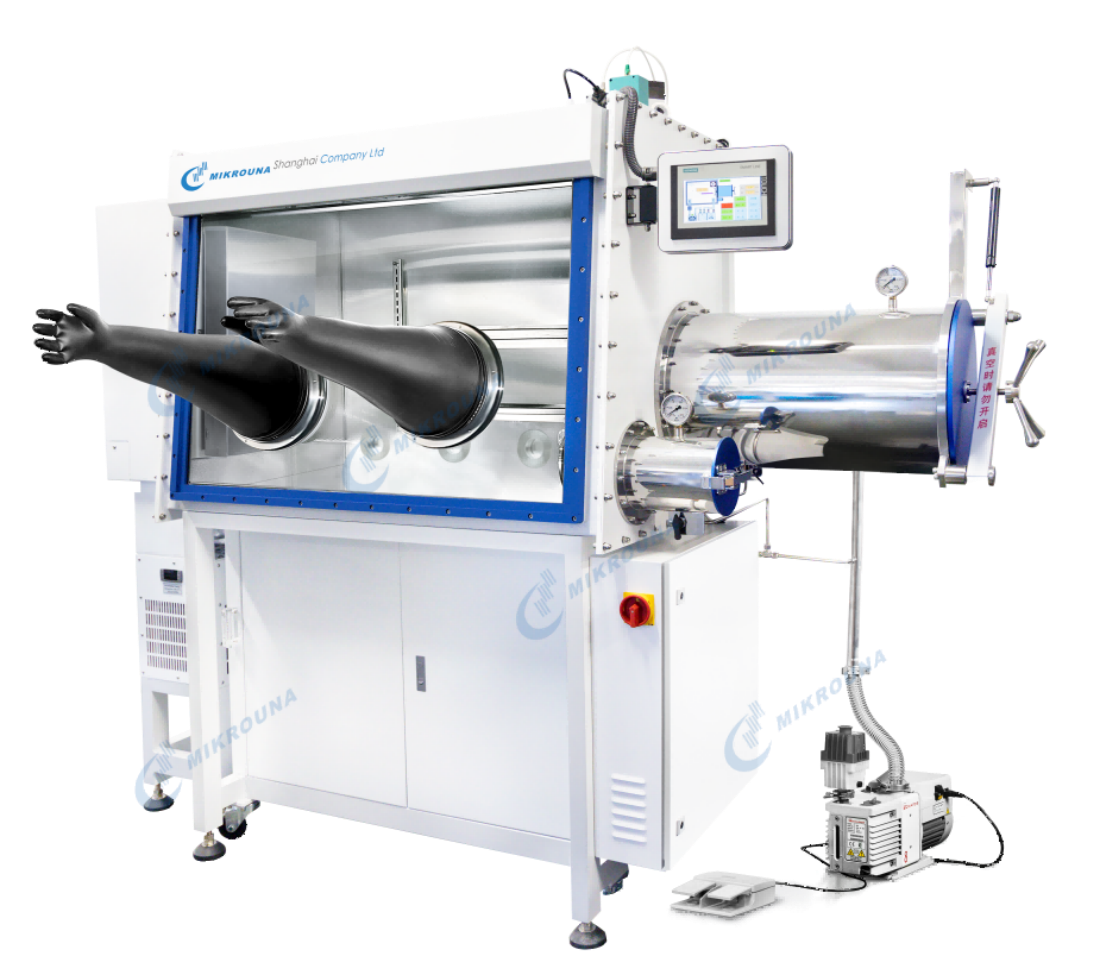

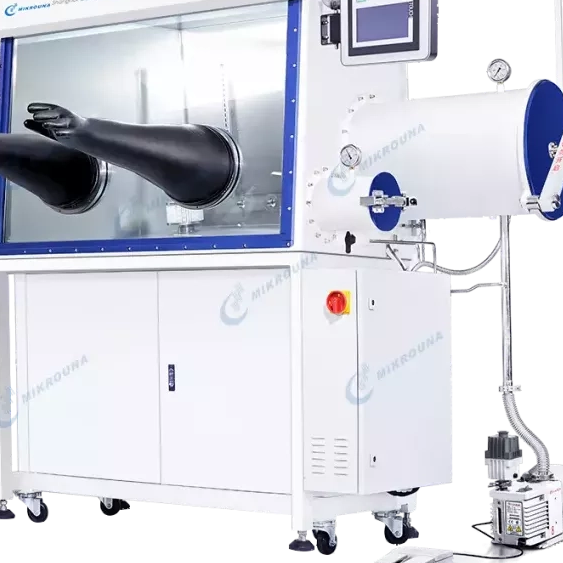

A vacuum glove box is a core system for precision experiments that require low moisture and low oxygen. The oxygen and water-vapor content inside the chamber can directly affect experimental accuracy and safety. The cleaning system is an important function for rapidly restoring a qualified atmosphere before deeper purification by circulation.
What Is the Cleaning Principle of a Vacuum Glove Box?
The cleaning function is essentially an open-flow gas-displacement process. High-purity inert gas is continuously introduced into the chamber to replace the existing atmosphere. The incoming gas helps remove air, water vapor, oxygen, and volatile organic-solvent vapors from the chamber, rapidly improving the internal environment and preparing it for subsequent purification through circulation.
Cleaning should not be confused with wiping or surface cleaning. It is also different from circulation and regeneration: cleaning replaces the chamber atmosphere, circulation provides ongoing purification, and regeneration restores the purification column's capacity.
1. When Should Cleaning Be Used?
Cleaning is not intended as a routine daily operation. It is used when the chamber atmosphere has become seriously unbalanced.
Typical situations described in the source guidance include:
- Initial equipment installation and commissioning. - A commissioning or operating action has compromised the sealed inert atmosphere. - A large amount of organic-solvent vapor has accumulated and cannot be removed effectively through normal purification. - Chamber moisture and oxygen values exceed 200 ppm.
If circulation is started directly under severely elevated moisture and oxygen conditions, high concentrations of oxygen and water vapor can rapidly consume molecular sieves and copper catalyst in the purification column. This can reduce purification-material performance and increase maintenance and regeneration frequency.
2. Cleaning Gas Requirements and Consumption
Nitrogen, argon, or helium can be selected as the working gas for cleaning, according to the equipment configuration. The gas purity should be above 99.99%. Low-purity gas may not provide effective atmospheric displacement.
Under the standard conditions described in the source material, completely replacing the air in a single chamber may consume approximately 4,000–8,000 L of gas. When the chamber is fully filled with air, preparing more than 8,000 L of gas is recommended to support thorough displacement.
The gas-supply pressure at the regulator should remain stable at approximately 0.2–0.4 MPa. Insufficient pressure can activate equipment protection and automatically close the inlet valve, interrupting the cleaning process.
3. Standard Cleaning Procedure and Acceptance Criteria
Before cleaning, turn off circulation and confirm that the gas-supply pressure is stable and within the required range. Enter the cleaning interface on the equipment touchscreen, set the chamber-pressure and cleaning parameters, and then start the operation.
The chamber must remain under positive pressure during cleaning. Avoid negative pressure because it can allow external air to flow back into the chamber and contaminate the controlled atmosphere.
After cleaning is completed, wait about 10 minutes before using the analyzers to measure the chamber atmosphere. The source guidance considers cleaning qualified when both moisture and oxygen readings are below 200 ppm.
If the readings do not meet the target, investigate possible chamber leakage and repeat the purge-cleaning process as necessary.
4. Practical Safety Precautions
When replacing a gas cylinder during cleaning, first turn off the cleaning function and complete pressure release before replacing the cylinder. This helps prevent high-pressure impact from damaging pneumatic valves.
If the gas pressure falls below 0.2 MPa, the equipment may automatically close the cleaning inlet valve. Maintain an adequate gas supply throughout the operation.
Do not start circulation directly when moisture and oxygen levels are severely elevated. Doing so can accelerate consumption of purification materials.
Understanding the difference between cleaning, circulation, and regeneration is essential for correct vacuum glove box operation. By selecting cleaning for the appropriate conditions, maintaining sufficient high-purity gas, keeping the chamber at positive pressure, and verifying the final moisture and oxygen readings, operators can help protect purification materials and maintain a reliable dry, oxygen-controlled experimental environment.
