In lithium battery, perovskite, nuclear-industry, and OLED research and production, a vacuumglove boxmay be designed to maintain internal moisture and oxygen levels below 1 ppm. This performance depends on five systems working together in a closed control loop: sealing protection, purification columns, gas circulation, online moisture and oxygen monitoring, and PLC-based automatic control.
1. What Does a Moisture and Oxygen Level Below 1 ppm Mean?
PPM means parts per million. A moisture and oxygen specification below 1 ppm means that the concentrations of both water vapor and oxygen inside the chamber are controlled below one part per million.
Lithium batteries, lithium-metal materials, organic photosensitive materials, and nuclear-related materials can be highly sensitive to moisture and oxygen. Even trace exposure may lead to oxidation, hydrolysis, or material degradation. For these applications, maintaining moisture and oxygen below 1 ppm is an important environmental requirement for research and production.
2. Five Technologies That Help Maintain Below-1-ppm Conditions

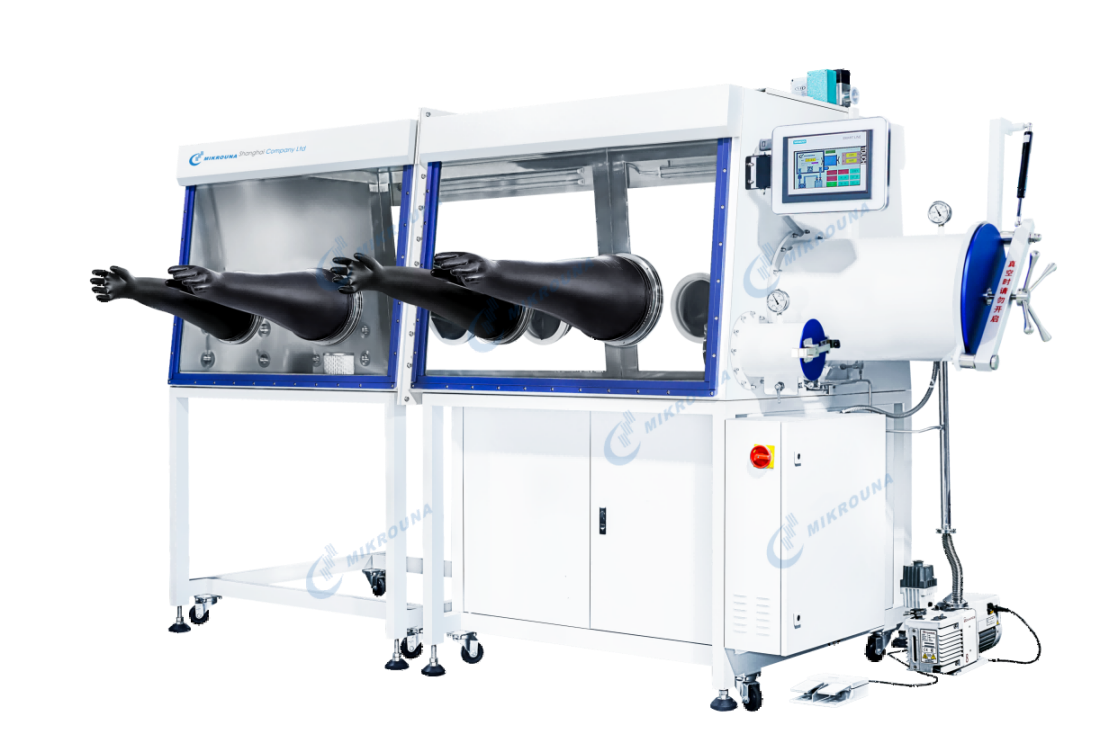

The first requirement is to minimize the entry of outside air. The described vacuum glove box design uses an integrally machined flanged viewing window with O-ring vacuum seals. The glove ports, large and small antechambers, and other interfaces receive multiple sealing treatments to keep the chamber leak rate very low.
Purification Columns: Molecular Sieves and Copper Catalyst
Seals help block external contaminants, but moisture and oxygen remaining inside the chamber or released by materials must also be removed. The purification column uses molecular sieves and copper catalyst as its main purification materials.
Molecular sieves remove water through physical adsorption. When saturated, they can be regenerated by heating and vacuum treatment to release the adsorbed moisture. The copper catalyst removes oxygen through a chemical reaction between copper and oxygen. When the catalyst becomes saturated, heating it in a hydrogen-containing mixture reduces it and restores its oxygen-removal capacity.
As chamber gas passes through the purification column, molecular sieves capture water while the copper catalyst consumes oxygen, purifying the gas.
Closed Gas Circulation: Treating the Chamber Atmosphere Uniformly
A purification column alone is not enough; a circulation fan is also needed to move gas through the system. Under PLC control, inert gas circulates through a closed loop between the chamber and the purification column. Chamber gas repeatedly passes through the column for moisture and oxygen removal, and the purified gas returns to the chamber.
This circulation helps prevent localized accumulation of moisture and oxygen, allowing concentrations throughout the chamber to decrease toward the target.
Online Moisture and Oxygen Analyzers: Monitoring Conditions in Real Time
The system can be equipped with a dew-point or moisture analyzer and an oxygen analyzer. These instruments continuously measure the concentrations of water and oxygen and send the data to the PLC control system. If moisture or oxygen levels rise, the control system receives the signal and can use it as a basis for adjusting operation.
PLC Control: Maintaining Dynamic Balance
The PLC receives data from the analyzers and can automatically or manually manage chamber pressure, gas replenishment, exhaust, and circulation-fan speed. If a small leak or material transfer introduces trace contaminants and moisture or oxygen levels rise, the system can adjust circulation conditions and replenish high-purity inert gas to help return the readings to the below-1-ppm range.
Conclusion
Maintaining moisture and oxygen below 1 ppm is not the result of a single component. It relies on effective sealing, suitable purification materials, closed-loop gas circulation, continuous monitoring, and coordinated PLC control. Together, these systems help maintain a stable inert atmosphere for sensitive glove box applications.
