Organic light-emitting diode (OLED) materials face severe threats from trace moisture, oxygen, and airborne particulates during fabrication. Even minute exposure to these elements triggers rapid material degradation. This contamination causes irreversible dark spots and critically shortens device lifespans. Standard cleanrooms fail to offer enough protection during sensitive wet coating and vacuum evaporation stages. A dedicated micro-environment becomes absolutely mandatory to shield delicate organic semiconductors, prevent early device failure, and ensure high production yields. Choosing the right enclosure demands more than evaluating basic seals. You must carefully assess process tool integration, complex solvent management, and sustained system efficiency. This article explores how advanced inert solutions directly protect product yield and scientific reproducibility. We will break down essential technical benchmarks, review equipment integration strategies, and provide a comprehensive framework for selecting the ideal system.

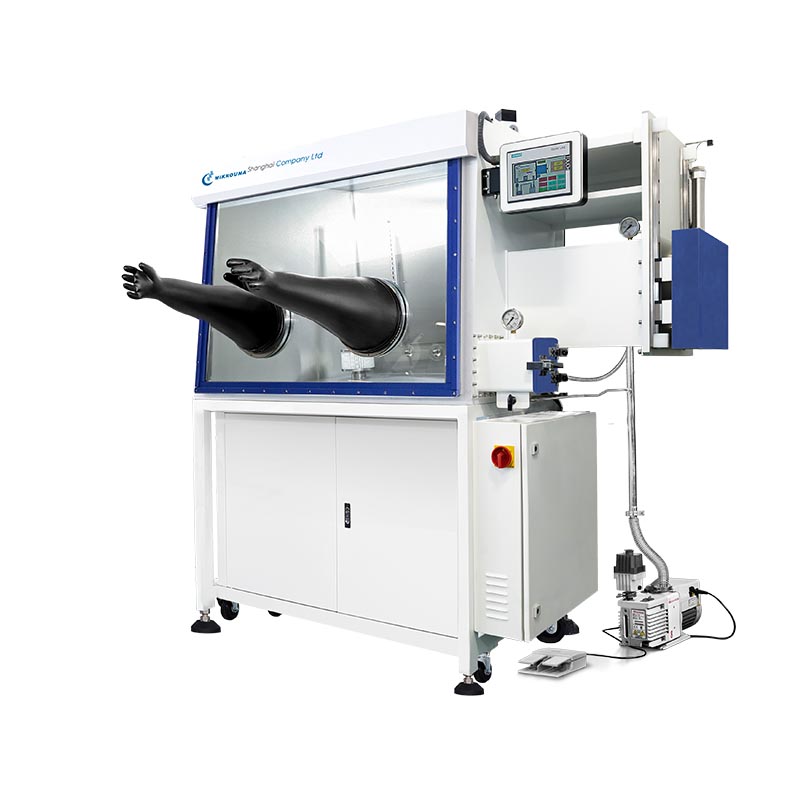

A production-grade OLED glove box must reliably maintain H2O and O2 levels below 1 ppm via closed-loop purification.
Standardizing on equipment integration (spin coaters, thermal evaporators) is critical for minimizing material transfer risks.
True operational efficiency hinges on automated gas management, regenerable solvent traps, and energy-saving modes.
Validation requires strict adherence to international leak rate standards (e.g., ISO 10648-2).
Protecting yield remains the primary challenge in organic semiconductor deposition. Atmospheric exposure severely damages fragile organic layers. When oxygen and moisture penetrate these thin films, they react chemically. This reaction creates non-emissive zones known as dark spots. Over time, these spots expand, causing complete device failure. Operating within an OLED production inert environment eliminates these ambient risks entirely. It locks out atmospheric threats before they compromise your display materials. You must map this controlled environment directly to your specific manufacturing sequence. The OLED fabrication process involves multiple highly sensitive steps. Wet coating techniques, such as spin coating or slot-die coating, demand strict atmospheric control. Vacuum evaporation, encapsulation, and final UV curing also require absolute isolation. By containing these sequences inside an inert atmosphere glove box, you eliminate dangerous transition periods. Materials never touch ambient air between process steps, preserving their intrinsic conductive and emissive properties. Many facilities mistakenly view these enclosures solely as safety equipment. While they do protect operators from hazardous chemicals and toxic solvents, their true value extends much further. The primary driver for adopting these systems in OLED fabrication is absolute defect reduction. They guarantee scientific reproducibility. When you control the atmosphere down to the molecular level, you remove environmental variables. This consistency empowers engineering teams to scale up from lab research to pilot production smoothly.
Achieving a stable micro-environment requires sophisticated gas purification. You cannot rely on basic sealed boxes to protect OLED materials. The industry standard demands maintaining moisture and oxygen levels below 1 part per million (ppm). To hit this sub-1 ppm standard, advanced purification columns utilize specific active materials. Molecular sieves physically trap water molecules. Meanwhile, highly active copper catalysts strip oxygen from the circulating gas. Together, they create an ultra-pure atmosphere essential for sensitive organic electronics. Understanding system leakage represents another critical technical benchmark. Physics dictates that no enclosure remains perfectly sealed forever. Industry compliance standards, such as ISO 10648-2, set strict acceptable leak rates. A high-performance inert glove box typically targets a leak rate of less than 0.05 vol%/h. However, you must acknowledge practical operating realities. The structural stainless steel shell rarely leaks. Instead, the butyl or hypalon gloves themselves act as the primary source of micro-permeation. Gas molecules slowly diffuse through the rubber over time. Therefore, minimizing the number of glove ports directly improves long-term atmospheric purity. Facilities must also choose between closed-loop circulation and continuous purging. We strongly recommend closed-loop architectures for OLED manufacturing. Below is a breakdown of how these two gas management strategies compare:
System Feature | Continuous Purging | Closed-Loop Circulation |
|---|---|---|
Gas Consumption | Extremely high. Pushes fresh gas continuously and vents it outdoors. | Very low. Recycles and purifies the same gas inventory continuously. |
Purity Stability | Fluctuates based on incoming gas purity and flow rates. | Highly stable. Consistently holds H2O and O2 levels below 1 ppm. |
Regeneration | Not applicable. No purification columns are utilized. | Automated sequences heat and flush the columns to restore capacity. |
Operational Impact | Inefficient for long-term production. Leads to massive gas waste. | Optimizes resources. Represents the industry standard for organic electronics. |
Transitioning a basic enclosure into a functional process station requires careful engineering. You are essentially building an "inert lab within a lab." An OLED research glove box must accommodate multiple pieces of analytical and deposition hardware. This integration eliminates the need to transport vulnerable samples across the room, thereby drastically reducing contamination risks. Heavy tool compatibility dictates the physical architecture of the enclosure. Thermal evaporators, dry scroll pumps, and automated liquid dispensers carry significant mass. They also generate constant mechanical vibration. To handle these stresses, the enclosure requires reinforced structural bases. Anti-vibration designs become mandatory. If you mount a vacuum pump directly to a standard floor stand, the vibrations will transfer to the spin coater. This mechanical interference ruins delicate wet coating uniformity and compromises film thickness. Process tool interfaces demand meticulous attention to sealing details. You must integrate spin coaters, UV encapsulation modules, and solar simulators seamlessly without breaking the primary seal. Follow these best practices when integrating heavy equipment:
Specify Custom Flanges: Utilize advanced O-ring flange designs. They allow you to mount tools through the floor or walls without disturbing the main chamber atmosphere.
Isolate Vibrations: Install heavy vacuum pumps on separate external frames. Connect them to the main chamber using flexible stainless steel bellows.
Manage Thermal Loads: Thermal evaporators generate intense heat. Integrate active water-cooling loops into the floor panels to prevent internal temperature spikes.
Ensure Safe Tool Removal: Design access panels so technicians can extract broken equipment for service quickly without exposing the entire chamber to ambient air.
Solvent contamination stands out as a critical failure point in organic electronics fabrication. The wet coating process relies heavily on volatile organic compounds (VOCs). As you spin-coat organic semiconductor inks, these solvents evaporate directly into the chamber atmosphere. If left unchecked, these chemical vapors will quickly poison the O2 and H2O purification beds. They coat the active copper catalyst, rendering it permanently blind to oxygen. To prevent this catastrophic failure, you must include regenerable solvent traps or activated carbon modules in your flow path. These traps capture VOCs long before they reach the main purification column. Sensor selection strategy also determines your long-term success. You need reliable atmosphere purity monitors to guarantee your sub-1 ppm environment continuously.
Solid-State Zirconia Sensors: These offer exceptional longevity and require very low maintenance. They resist exposure to ambient air beautifully. However, they struggle in atmospheres heavily saturated with certain flammable solvents.
Electrochemical Sensors: These represent the preferred choice when incompatible solvents are present in the coating sequence. They handle harsh chemical environments much better but require more frequent calibration and replacement.
Your choice of working gas impacts both process outcomes and facility infrastructure. A standard nitrogen glove box meets the requirements for most general electronics and OLED applications. Nitrogen is highly accessible, easy to generate on-site, and remarkably stable. However, argon may be required if you introduce specific highly reactive metals into your deposition process. Lithium or calcium, often used as electron injection layers in OLED stacks, can react with nitrogen at elevated temperatures. Always verify your specific material compatibility before selecting your bulk gas supply.
Procurement and engineering teams face complex choices when specifying an enclosure. The ideal glove box for OLED manufacturing acts as a long-term integration platform. You must evaluate systems based on their adaptability and operational efficiency. Scalability and modularity should lead your evaluation criteria. Research workflows evolve rapidly. A single workstation today might need to support a fully automated pilot line next year. Look for modular systems featuring bolt-on removable side panels. This mechanical design allows you to link multiple workstations together effortlessly. You can expand your antechamber capacity or add a dedicated thermal evaporation chamber down the road. Furthermore, modular designs allow multiple connected chambers to share a single, high-capacity gas purifier. This shared architecture simplifies maintenance protocols and conserves valuable cleanroom floor space. Energy efficiency directly impacts your facility overhead. High-end systems feature automated eco-modes. These modes intelligently monitor chamber conditions around the clock. During idle times, the system automatically reduces blower speeds and dims internal lighting. This simple adjustment can drop power consumption from roughly 200W down to an impressive 30W. Over a multi-year manufacturing project, these energy-saving features significantly reduce your environmental impact and daily power demands. Finally, use a rapid-fire vendor validation checklist before making your final selection. Require documented proof of PLC control accuracy, ideally holding internal pressures within +/- 15 mbar. Insist on automated pressure control systems to prevent accidental glove blowouts. Verify that the manufacturer holds relevant ISO and CE certifications. Above all, confirm they provide robust local service and calibration support. A flawless enclosure loses its utility quickly if you cannot secure replacement sensors or emergency maintenance locally.
A high-performance enclosure serves as the absolute foundation for successful organic semiconductor fabrication. It is a complex integration platform, not merely a sealed box. Every aspect of the design, from closed-loop purification to advanced solvent management, directly protects your fragile materials. To maximize your operational success, keep these key takeaways in mind:
Prioritize systems with automated solvent traps to protect your purification columns from VOC damage.
Demand modular architectures featuring removable side panels to ensure your workstation can scale alongside your research.
Specify robust anti-vibration integration methods for heavy process tools like thermal evaporators.
Leverage energy-saving eco-modes to drastically reduce facility power consumption during idle periods.
We highly advise evaluating any prospective system based on its ability to seamlessly integrate deposition tools without compromising the sub-1 ppm environment. Take the next step by consulting with a dedicated engineering specialist. They can review your specific process flow, analyze your facility layout, and draft a customized inert integration plan tailored to your exact manufacturing needs.
A: Yes. High-quality systems utilize modular designs with removable side panels. This allows you to bolt on additional workstations, larger antechambers, or specific process modules later. Multiple connected chambers can often share a single high-capacity gas purification line, making expansion efficient and straightforward.
A: You should calibrate your oxygen and moisture sensors annually. Regular maintenance ensures they accurately detect levels below 1 ppm. Skipping calibration leads to baseline drift, which causes false purity alarms or, worse, allows undetected contamination to ruin your delicate organic semiconductor materials.
A: Wet coating processes release volatile organic compounds (VOCs). If left untrapped, these solvent vapors circulate into the main purification unit. They permanently coat and poison the active copper catalysts. A regenerable solvent trap captures these VOCs, protecting your primary purification beds and maintaining system functionality.
A: Purging pushes a continuous flow of fresh inert gas into the chamber and vents it out, which consumes massive amounts of gas. Closed-loop purification recycles the existing gas. It pulls it through molecular sieves and copper catalysts to scrub out impurities, maximizing efficiency and minimizing gas consumption.
