Product Introduction

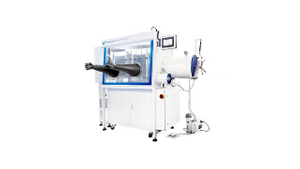

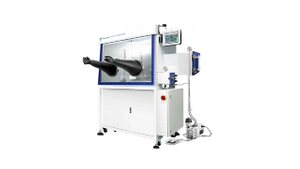

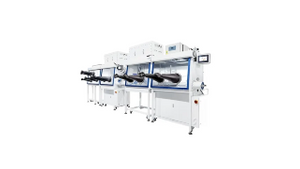

The "integrated" lithium battery solid-state battery production line can include the entire process of lithium battery production, including lithium strip cutting, lithium metal stacking, hot pressing, label welding, sealing, vacuum electrolyte filling, vacuum sealing, etc. All of these processes can be completed in a glove box.
The glove box is equipped with a large capacity oven controlled by PLC
Equipped with a fully automatic system: the oven, glove box, and unloading room can be fully automated for transportation; Automatic switching between injection, sealing, and standby processes
The glove box is equipped with a cooling system
High output, suitable for large-scale production
Product Function
Large capacity oven is PLC controlled, integrated with glove box
Fully automated transfer between oven, glove box, and discharge chambers
Cooling system integrated into glove box
Automatically transfers between Injecting, Sealing, and Standby processes
High volume throughput
Best for large batches of similar products
Energy-saving low dew point drying and dehumidifification system
Lithium metal negative electrode automatic cutting and folding in one
Automatic hot press testing of laminated cell
Automatic ultrasonic welding of cell tab
Welding mark shaping cleaning and gluing
Automatic punch forming of aluminum-plastic film
Automatic shell encapsulation of cell
Post-encapsulation edge cutting & shaping & testing
Lithium metal cell vacuum electrolyte filling system
Scanning code and weighing before and after fifilling
Voltage and temperature monitoring after fifilling
High voltage standing after vacuum fifilling
MES system connection function
