A glove box is a sealed and controlled workspace that allows scientists, engineers, and industry professionals to handle materials and substances in a protective atmosphere. These environments are commonly used for applications that involve highly sensitive materials such as those used in battery research, semiconductor manufacturing, and chemical experiments.
The most critical feature of a glove box is the ability to maintain an oxygen-free or inert atmosphere, as many materials are sensitive to oxygen and moisture. For example, substances like lithium, magnesium, and other reactive materials can easily degrade or react with oxygen or water vapor, leading to contamination or even dangerous reactions.
This article will explore how a glove box maintains an oxygen-free environment. We'll discuss the key methods, technologies, and systems that work together to create and sustain a low-oxygen, controlled atmosphere, and how businesses like Mikrouna (Shanghai) Industrial Intelligent Technology Co., Ltd. help provide solutions to industries requiring this technology.
1. Why is an Oxygen-Free Environment Important?
An oxygen-free environment inside a glove box is essential for the safe handling of materials that are sensitive to oxidation or other atmospheric conditions. Oxygen, being highly reactive, can cause:
Oxidation: This is a chemical reaction in which oxygen combines with a substance, often leading to deterioration, such as rust formation in metals or degradation of organic compounds.
Degradation of Sensitive Materials: Some materials, such as certain chemicals, metals, and pharmaceuticals, lose their effectiveness or undergo unwanted reactions when exposed to oxygen.
Contamination: Materials used in precise manufacturing processes, such as batteries or semiconductors, need to be kept in a controlled, oxygen-free environment to prevent contamination that could affect the product's performance or reliability.
Thus, ensuring an oxygen-free environment ensures that materials are protected, pure, and ready for specific industrial applications.
2. Creating an Oxygen-Free Environment Inside the Glove Box
To maintain an oxygen-free atmosphere inside a glove box, various mechanisms and technologies are used in tandem. The main components used to achieve this are inert gases, gas circulation systems, oxygen sensors, scrubbing systems, and airtight seals. Each of these components works together to ensure that the oxygen concentration inside the glove box remains at less than 1 ppm (parts per million).
2.1. Inert Gases: The Basis for Oxygen-Free Atmosphere
The first step in creating an oxygen-free environment inside a glove box is to replace the ambient air with inert gases such as nitrogen (N2) or argon (Ar). These gases are used because they are chemically stable and do not react with materials inside the glove box, making them ideal for creating a safe atmosphere.
Nitrogen (N2): This gas is the most commonly used because it makes up about 78% of the Earth’s atmosphere. It’s inexpensive, abundant, and inert, making it perfect for creating an oxygen-free environment.
Argon (Ar): Although more expensive than nitrogen, argon is used in specific cases where nitrogen is not suitable, such as when working with highly reactive materials. It’s denser than nitrogen and forms a more stable, low-oxygen atmosphere.
Once the glove box is filled with an inert gas, the oxygen in the box is displaced, creating an initial oxygen-free environment.
2.2. Gas Circulation System: Keeping the Atmosphere Stable
A glove box is equipped with a gas circulation system that constantly moves the inert gas inside the chamber. This system ensures that the gas remains evenly distributed throughout the box and maintains the desired oxygen-free conditions.
Inert gas flow: The inert gas is pumped into the glove box and recirculated using fans or air pumps to ensure consistent mixing. This circulation also prevents stagnation and promotes better removal of oxygen.
Gas purging: If oxygen levels begin to rise due to external leaks or material introduction, the system will purge the existing atmosphere and replace it with more inert gas to restore the oxygen-free state.
2.3. Oxygen Scrubbing Systems: Removing Oxygen
While the circulation of inert gases creates a low-oxygen environment, it’s crucial to ensure that any remaining oxygen or moisture is thoroughly removed. This is done with oxygen scrubbers or adsorption systems that chemically or physically remove oxygen and moisture from the environment.
Molecular Sieves: These are materials that adsorb water and oxygen molecules. The sieve traps the molecules, preventing them from returning to the glove box atmosphere. These scrubbing materials can be periodically replaced or regenerated to maintain their efficiency.
Water-Oxygen Absorbers: These are chemicals that react with oxygen and water in the glove box, absorbing them and thus maintaining an ultra-low oxygen concentration.
Catalytic Systems: In advanced glove box systems, catalytic processes can be used to remove oxygen through a chemical reaction, ensuring that the oxygen concentration is continuously kept at safe levels.
2.4. Oxygen Sensors: Real-Time Monitoring
To ensure that the oxygen levels inside the glove box stay at optimal levels, oxygen sensors are installed. These sensors monitor the atmosphere inside the glove box, providing real-time readings of oxygen concentration. If the oxygen level rises above a preset threshold, the system activates the gas circulation or scrubbing mechanisms to restore the oxygen-free state.
Electrochemical sensors: These sensors detect oxygen through chemical reactions between oxygen and electrodes. Electrochemical sensors are typically used for precise measurements of oxygen levels in a controlled environment.
Zirconia oxygen sensors: These sensors offer excellent accuracy, especially in ultra-low oxygen environments, making them ideal for glove boxes used in highly sensitive applications.
2.5. Airtight Seals and Leak Prevention
To maintain the oxygen-free environment, a glove box must have airtight seals. These seals prevent any external oxygen from entering the system, which would compromise the internal environment. Common sealing materials include rubber gaskets, silicone, and high-quality seals designed for long-term use in low-oxygen environments.
Double Sealing Systems: In some glove boxes, a double-seal system is used to prevent leaks. The first seal acts as a barrier, while the second provides an added layer of security to ensure the oxygen-free environment is maintained.
Pressure Monitors: These monitors ensure that the glove box maintains the appropriate pressure and prevents the unwanted entry of oxygen due to any malfunction in the sealing system.
3. Maintaining the Oxygen-Free Environment Over Time
Maintaining an oxygen-free environment isn’t a one-time effort but an ongoing process. Over time, the glove box’s inert gas supply may diminish, or the oxygen levels could increase due to system leaks. For long-term maintenance, regular checks are essential to ensure that the glove box is functioning properly.
Refill and Regeneration: Periodic refilling of inert gas is necessary, as some gases may escape over time. Additionally, scrubbers and molecular sieves need to be replenished or regenerated to keep the oxygen concentration at the required levels.
Routine Maintenance: Regular checks on seals, gas flow systems, and sensors ensure that the glove box continues to maintain the oxygen-free environment effectively.
4. Mikrouna (Shanghai) Industrial Intelligent Technology Co., Ltd. Solutions

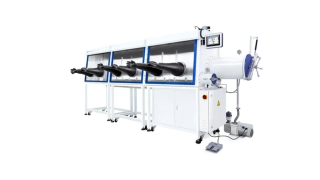

At Mikrouna (Shanghai) Industrial Intelligent Technology Co., Ltd., we specialize in providing cutting-edge glove box systems designed to maintain controlled environments for highly sensitive materials. Our glove boxes feature advanced inert gas circulation, high-efficiency oxygen scrubbers, and real-time oxygen sensors to ensure precise control over the internal atmosphere.
Whether you are working with batteries, semiconductors, chemical reactions, or pharmaceutical research, Mikrouna’s glove box systems offer the most reliable and accurate means of maintaining an oxygen-free environment for your operations. Our systems are engineered for ease of use, long-term durability, and high-performance standards, ensuring optimal safety and reliability for your critical processes.
FAQ
Q: How do glove boxes maintain low oxygen levels?
A: Glove boxes use inert gas circulation systems, oxygen scrubbing, and oxygen sensors to maintain a low-oxygen environment. The system continuously purges oxygen and moisture from the glove box to maintain the required atmosphere.
Q: How does an inert gas work in a glove box?
A: Inert gases like nitrogen or argon are used to replace oxygen within the glove box. These gases are chemically stable and prevent oxidation or reactions with sensitive materials inside the box.
Q: How often do I need to replace the inert gas in a glove box?
A: The inert gas inside the glove box may need to be replenished periodically depending on usage, leaks, and the type of materials being handled. Regular monitoring of oxygen levels and gas quality ensures that the system is functioning optimally.
Q: Can glove boxes be used for moisture-sensitive materials?
A: Yes, glove boxes can maintain low moisture levels through desiccants and drying systems. This allows them to create a controlled environment for materials that are sensitive to both oxygen and moisture.
