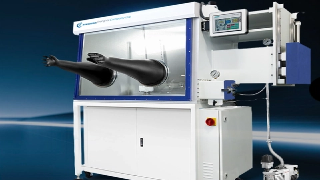

A nitrogen glove box is a specialized sealed enclosure designed to provide an inert atmosphere for handling sensitive materials. These systems are widely used in laboratories and industrial applications to protect products from exposure to oxygen, moisture, or other contaminants. Maintaining precise control of internal conditions is essential to ensure both the safety of the operator and the integrity of the materials being handled. Understanding the critical measurements needed in an inert glove box can help operators optimize performance, reduce contamination risks, and ensure consistent results.
Purpose of Inert Glove Boxes in Laboratories and Industry
An inert glove box allows scientists, engineers, and technicians to work with substances that would degrade, react, or become hazardous if exposed to normal atmospheric air. In many cases, these materials are sensitive to oxygen and water vapor at even very low concentrations. For example, certain chemicals used in semiconductor fabrication, lithium-ion battery production, or pharmaceutical research must be handled under carefully controlled conditions. A nitrogen glove box creates a stable, oxygen-free and moisture-free environment, allowing these tasks to be performed without risk of contamination or dangerous reactions.
Industrially, nitrogen glove boxes also help reduce costs by eliminating the need to discard compromised materials. In research, they ensure experimental repeatability and accurate data collection. This combination of protection and control is why inert glove boxes have become essential in many specialized work environments.
Common Inert Gases Used in Glove Boxes
While nitrogen glove boxes are the most common type, several other inert gases can be used depending on the application. Each gas has unique properties that make it suitable for specific tasks:
Nitrogen (N₂) – Affordable, widely available, and chemically inert for most applications. Ideal for general-purpose moisture and oxygen-sensitive work.
Argon (Ar) – Heavier than air and offers excellent protection for reactive metals or materials that could form nitrides with nitrogen.
Helium (He) – Used in certain analytical or leak detection applications due to its small atomic size and unique detection properties.
Specialty Gases – Hydrogen (H₂) or carbon dioxide (CO₂) may be used for very specific processes, though these require additional safety measures and monitoring.
Choosing the right gas is a key step in glove box operation, but regardless of the gas used, precise measurement and monitoring of key parameters remain essential.
Key Parameters to Monitor in Nitrogen Glove Boxes
To maintain a safe and stable working environment, operators must continuously monitor several critical factors inside the glove box:
Oxygen (O₂) Levels
Oxygen is one of the most important parameters to control. Even trace amounts can cause sensitive materials to oxidize or degrade. In most nitrogen glove boxes, the acceptable oxygen concentration is kept below 1 ppm (parts per million) for ultra-sensitive applications, though some processes allow slightly higher limits. Oxygen levels also act as a leak indicator—if levels start rising unexpectedly, it often means air is infiltrating the system.
Nitrogen (N₂) Concentration
In a nitrogen glove box, nitrogen concentration directly affects the inert atmosphere quality. While oxygen and moisture are often the focus, nitrogen itself is usually not detected in such systems. Instead, stable nitrogen supply is assumed to maintain the protective environment.
Humidity (H₂O) Levels
Moisture can be just as damaging as oxygen in many applications. For example, water vapor can cause unwanted chemical reactions, corrode sensitive metals, or reduce the performance of battery materials. Humidity levels are typically maintained at very low levels, often below 1 ppm. Constant monitoring helps prevent gradual increases in moisture that could compromise the environment.
Temperature and Pressure
Temperature fluctuations can influence chemical reaction rates and material stability, while pressure helps maintain the integrity of the glove box seal. A slight overpressure (relative to the surrounding air) is usually maintained to prevent outside air from entering. Monitoring both parameters ensures environmental stability and safety.
Measurement Techniques and Instruments
To accurately track these parameters, glove boxes use specialized instruments:
Online Impurities Analyzers – Provide real-time, multi-gas monitoring of oxygen, moisture, and sometimes additional contaminants. These analyzers are ideal for continuous process control.
Portable Oxygen Analyzers – Used for spot checks of gas supply purity before introducing nitrogen into the glove box. This helps confirm that the gas source itself is free from contamination.
In Situ Oxygen and Humidity Transmitters – Installed directly inside the glove box chamber, these sensors provide continuous, localized measurements.
Pressure Sensors – Ensure the glove box operates within the desired pressure range, maintaining a safe working environment and preventing air infiltration.
High-quality sensors with fast response times and low detection limits are critical for accurate measurement and timely corrective action.
Installation Best Practices for Measurement Equipment
Even the best sensors can give inaccurate readings if installed incorrectly. Several installation best practices can improve accuracy and reliability:
Avoid Dead Volumes – Sensors should be placed where gas flow is active, not in corners or stagnant zones where readings may not reflect actual conditions.
Manage Flow Rates – Proper flow rates help sensors respond quickly to changes while avoiding mechanical stress or sensor saturation.
Consider Pressure Effects – Some sensors are sensitive to pressure variations, so calibration may be needed for glove box pressure conditions, especially in vacuum operations.
Protect Sensors from Contaminants – Filters or extractive sampling methods can prevent dust, solvents, or reactive gases from damaging sensors.
Use Compatible Fittings – Ensure that flanges, connectors, and mounting hardware match the glove box design (e.g., KF flanges) to maintain the system’s integrity.
Maintaining and Controlling the Glove Box Atmosphere
Accurate measurement is only half the battle—maintaining the desired atmosphere requires active control:
Purging with Dry Nitrogen – Before starting work, the glove box is purged with dry nitrogen to remove oxygen and moisture. The process may involve several purge cycles until the target purity is reached.
Stabilizing the Atmosphere – Once purged, the glove box atmosphere is maintained through continuous circulation of nitrogen and purification using molecular sieves or oxygen scrubbers.
Leak Detection and Repair – Continuous monitoring helps detect leaks early. Prompt repair prevents contamination and reduces the need for costly re-purging.
Regeneration Systems – Many glove boxes use regeneration cycles for their purification systems, ensuring that the inert gas remains clean and dry without frequent replacement.
Safety Considerations
While nitrogen is non-toxic, it can displace oxygen in the surrounding workspace, creating a risk of asphyxiation. Operators should be trained in oxygen depletion hazards and use oxygen monitors in the laboratory if large amounts of nitrogen are used. Clear safety protocols, including ventilation requirements, personal protective equipment, and emergency response procedures, should be in place.
When specialty gases such as hydrogen are used, additional precautions like explosion-proof equipment, leak detection systems, and strict handling procedures are necessary.
Conclusion
The reliable operation of a nitrogen glove box hinges on the precise measurement and control of critical parameters such as oxygen levels, nitrogen concentration, humidity, temperature, and pressure. Utilizing accurately installed sensors for continuous monitoring ensures the internal environment remains stable, effectively protecting both the operator and sensitive materials inside. Through meticulous measurement, proper sensor placement, and efficient atmosphere management, users can optimize glove box performance and significantly extend the equipment’s service life.
